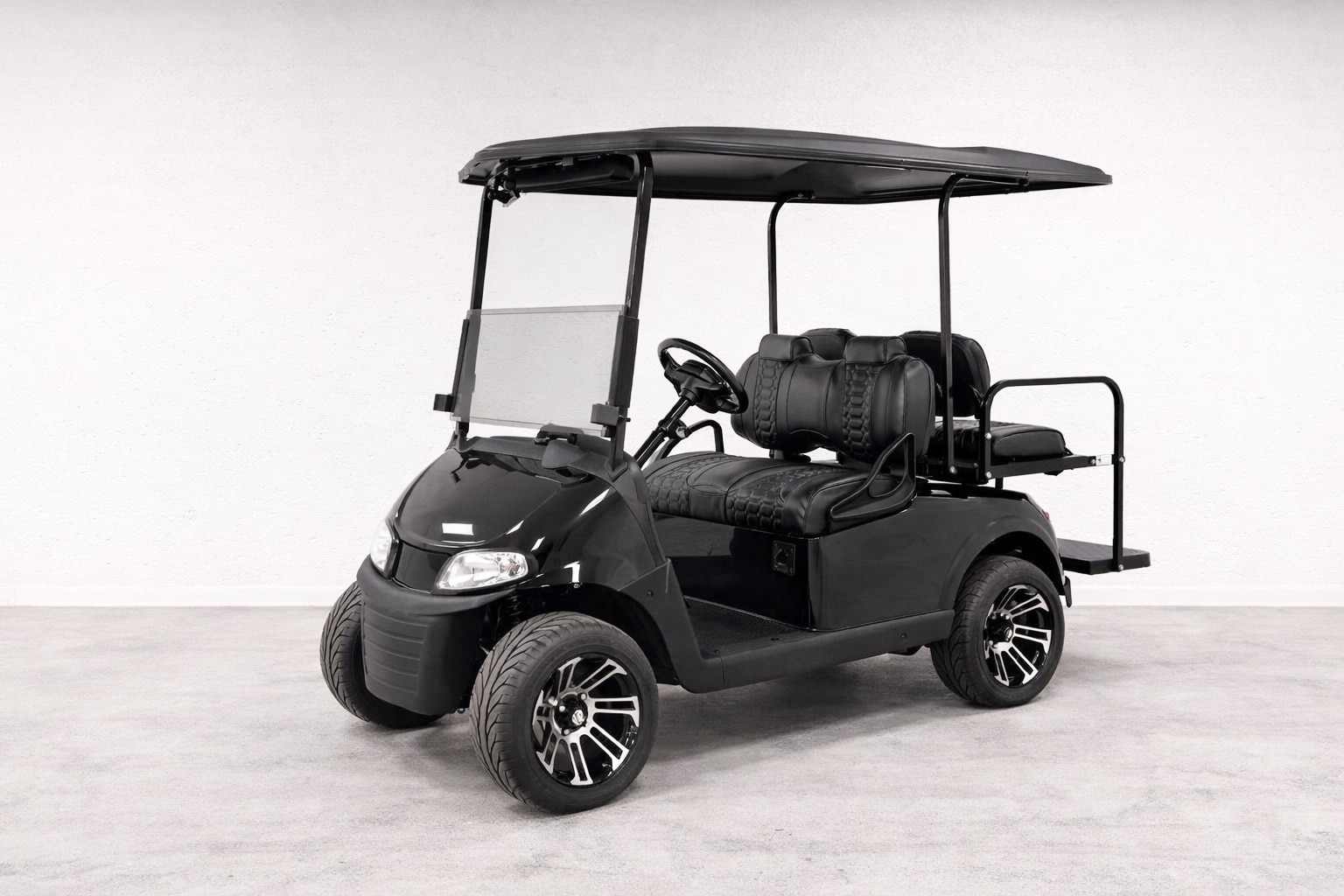

Ezgo RXV Elite Lithium (Black)

Overall Length: 94.5 in (240 cm)
Overall Width: 47.0 in (119 cm)
Wheelbase: 65.7 in (167 cm)
Front Wheel Track: 35.5 in (90 cm)
Rear Wheel Track: 38.0 in (97 cm)
Ground Clearance: 3.3–4.0 in (8–10 cm)

Power Source: 56 Volts AC
Horsepower: 4.4 hp (3.3 kW) continuous
Electrical System: 56 Volt
Key / Pedal Start: Pedal
Speed Controller: 235 Amp AC controller
Drivetrain: Motor shaft direct drive
Transaxle: Limited slip differential
Gear Selection: Dash-mounted forward / neutral / reverse
Rear Axle Ratio: 16.99:1
Batteries (Qty / Type): ELiTE 2.0, 56V lithium
Battery Charger: 56VDC lithium charger (11 ft / 18 ft cord)

Dry Weight: 605 lbs (without batteries)
Curb Weight: 655 lbs (with lithium modules)
Load Capacity: 500–800 lbs
Outside Clearance (Turning Radius): 19.2 ft
Speed: 19.5 mph (non-lifted), up to 25 mph (lifted, tire dependent)

Steering: Double-ended rack and pinion
Suspension: Independent A-arm coil-over (front), mono-leaf springs with hydraulic shocks (rear)
Service Brake: Induction motor
Parking Brake: Automatic electro-magnetic

Frame: Welded steel with powder-coat protection
Body & Finish: Injection-molded TPO
